CECIL E. HANSON COLLECTION
ANTIQUE SURVEYING INSTRUMENTS

DRAWING AND DRAFTING INSTRUMENTS

K&E N4100 Stadia Slide Rule

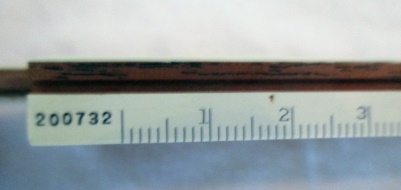

Serial Number: 200732 (Number imprinted on side of slide rule)
Maker: Keuffel & Esser, New York, NY
Dimensions: 10-3/4" x 1-3/8" x 3/8"

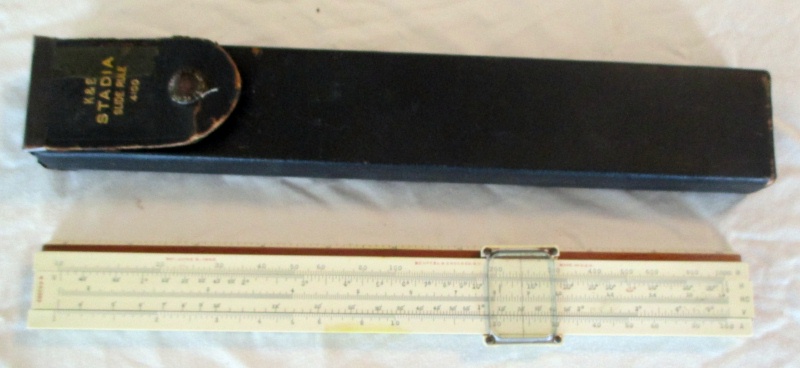

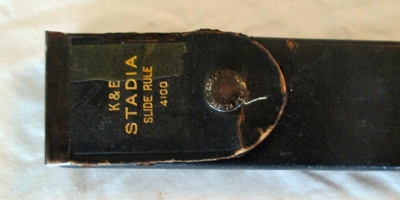

Case: Paper board - 11" long, top of case repaired
Condition: Good
Found: Unknown
CEH Inventory#: D36

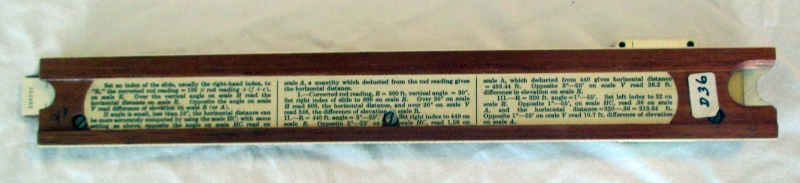

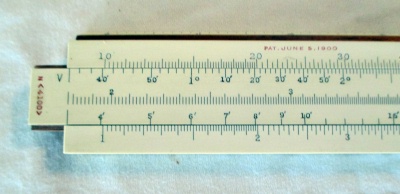

This 10" Keuffel & Esser (K&E) Model N4100 stadia slide rule was used by surveyors to quickly calculate horizontal distances and vertical elevation differences from stadia measurements. It is made with a traditional mahogany wood core and has black graduated scales imprinted on a white celluloid facing. One of the edges has an english scale in inches, the other has a metric scale in centimeters. The slide rule is in good condition, showing little wear. The paper board case does show wear and the flapper lid has been repaired.

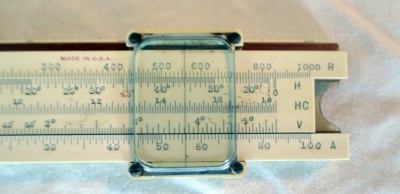

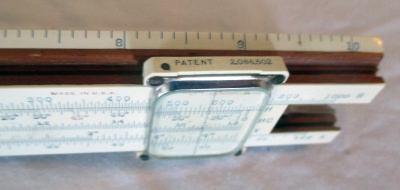

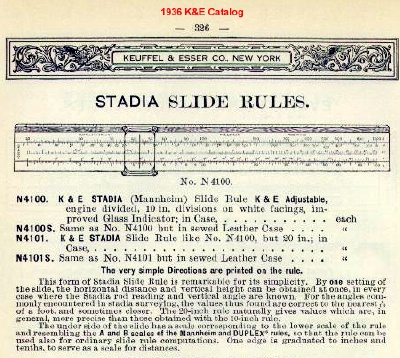

It has a metal rimmed cursor which was introduced in 1936. K&E dropped the "N" from the model number in 1955. So this slide rule was  made between 1936 and 1954. K&E used four series of serial numbers for its slide rules, restarting the numbers for each series. This was likely in Series 2 and sn200732 would indicate it was manufactured around 1947 (References - https://followingtherules.substack.com/p/a-review-of-k-and-e-serial-numbers and https://www.mccoys-kecatalogs.com/keserialnumbers/Dating-2.htm).

This vintage collectible showcases the quality craftsmanship of Keuffel & Esser, known for producing high-quality slide rules. With its sturdy construction and precise measurements, this slide rule would be a valuable addition to any collection.
